Repair Sleeve Description

Compression fittings mean fittings to be installed by hydraulic compressors and include mid-span joints, repair sleeves, dead-end termination, and jumper terminals.

1. Technical datasheet

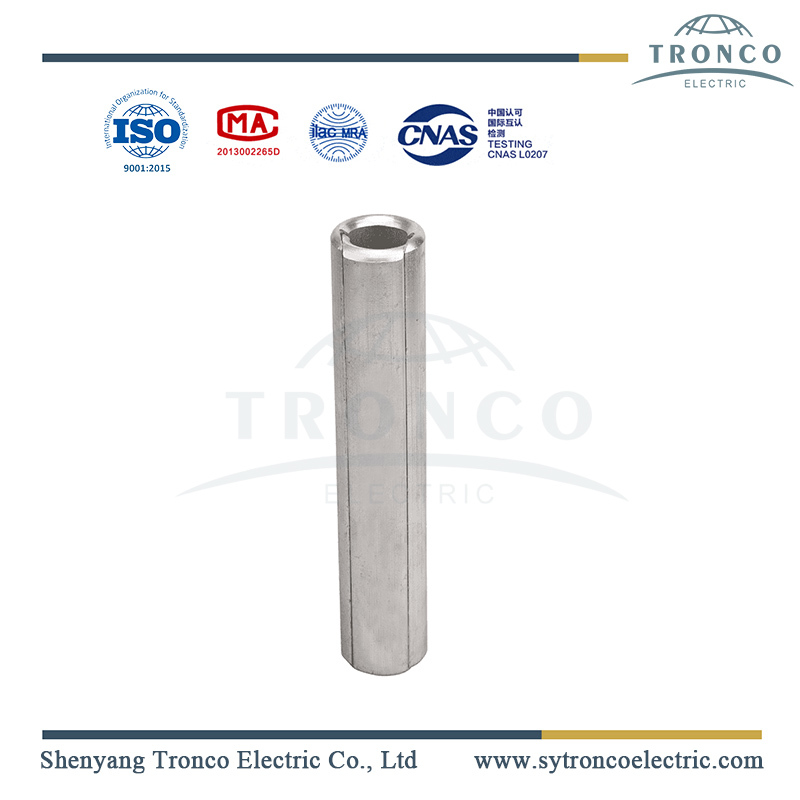

Repair Sleeve for ACSR, AAC, AAAC Conductor

Repair sleeve for conductors

Type	Suitable Conductor, dia.	Dimensions(mm)			Weight (Kg)
Type	Suitable Conductor, dia.	D	L	r	Weight (Kg)
JX-95/55	15.70-16.79	32	150	9.0	0.25
JX-185/10	17.01-18.09	32	150	10.0	0.20
JX-185	18.10-19.60	32	150	10.5	0.20
JX-210	20.00-20.90	34	200	11.0	0.29
JX-240	21.00-22.50	36	200	12.0	0.33
JX-240/55	22.60-23.00	40	200	12.5	0.31
JX-300/15	23.01-24.00	40	250	13.0	0.52
JX-300	24.10-25.10	42	250	13.5	0.51
JX-300/70	25.20-26.50	45	300	14.5	0.55
JX-400	26.51-27.20	45	300	14.5	0.75
JX-400/50	27.21-27.90	48	300	15.0	0.90
JX-400/65	27.91-29.00	48	300	15.5	0.90
JX-400/95	29.10-29.90	52	300	16.0	0.85
JX-500	29.91-31.00	52	300	18.0	1.07
JX-630	31.01-34.90	60	350	18.0	1.70
JX-800/55	35.01-38.60	65	350	20.0	1.9
JX-800	36.61-39.00	65	350	20.5	1.9

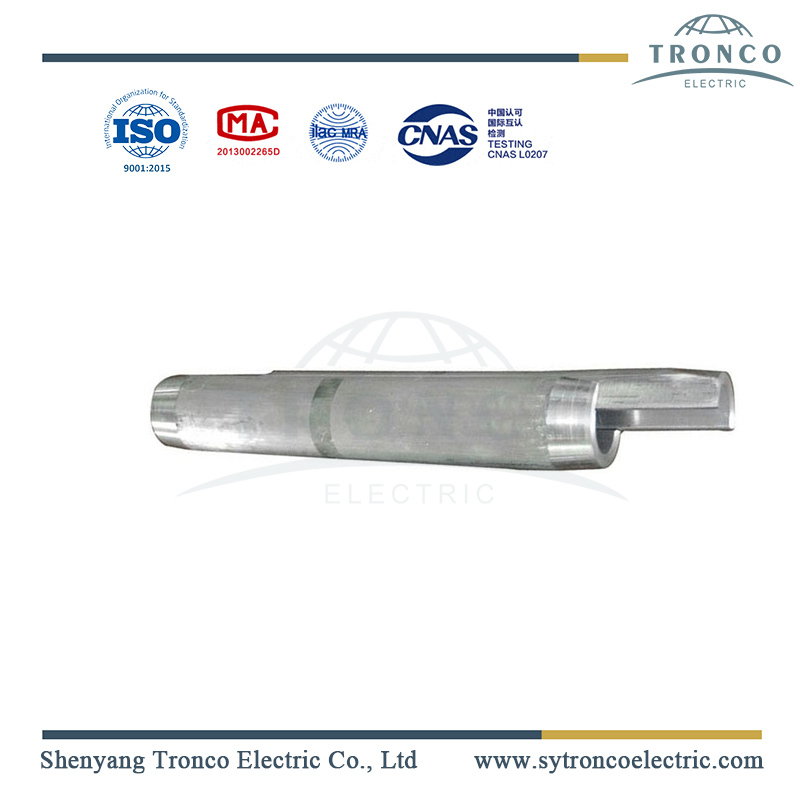

Repair Sleeve for Steel Wire

Conductor fittings

Type	Suitable Steel Wire, mm²	Dimensions(mm)			Weight (Kg)
Type	Suitable Steel Wire, mm²	D	L	r	Weight (Kg)
JX-35G	GJ-35	16	120	4.2	0.11
JX-50G	GJ-50	18	120	4.8	0.14
JX-70G	GJ-70	22	140	5.8	0.25
JX-80G	GJ-80	24	140	6.2	0.40
JX-100G	GJ-100	26	140	7.0	0.41
JX-150G	GJ-150	32	200	8.4	0.90

3. Test standard

a) BS 3288-Insulator and conductor fittings for overhead power lines.

b) BS 729 -Hot Dip Galvanized Coatings on Iron and Steel Articles.

Mechanical Type Test

Electrical Type Tests

Galvanizing Tests

Corona Type Test

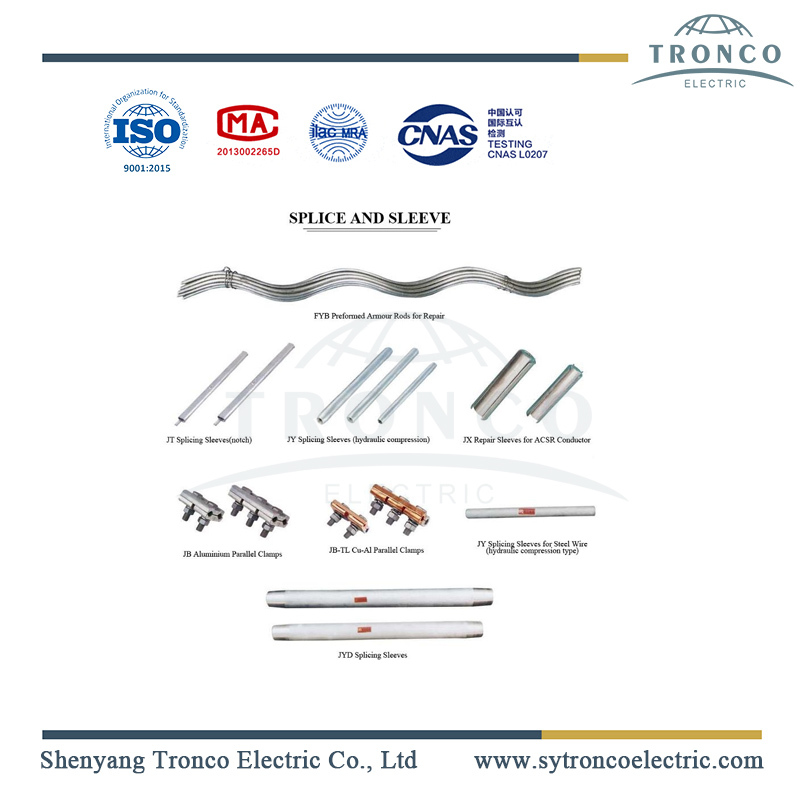

Splicing sleeve for conductors

Repair sleeve for conductors

The repair sleeves are used to repair minor conductor damage when no more than two wires of the outer layer are broken. These splicing sleeves are also used to repair damage to the aluminum coating of the ground wire and can not be used when the steel portion is damaged or broken.
