Tension Insulator String Introduction

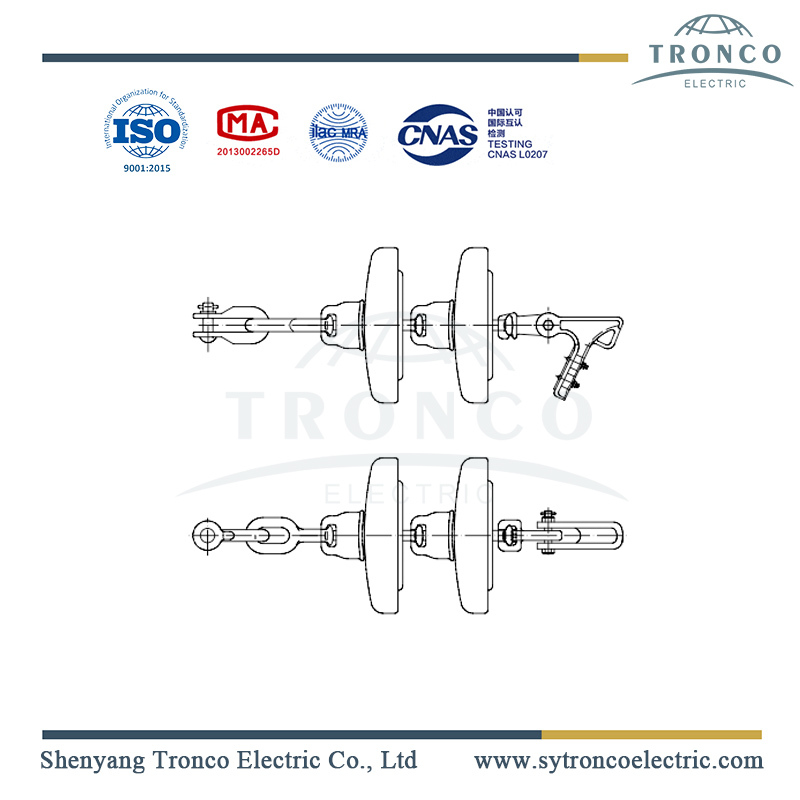

1. Single tension string
Components of single tension string
| 1. Anchor shackle | 2. Ball eye | 3. Insulators |
| 4. Socket eye | 5. Anchor shackle | 6. Tension clamp |

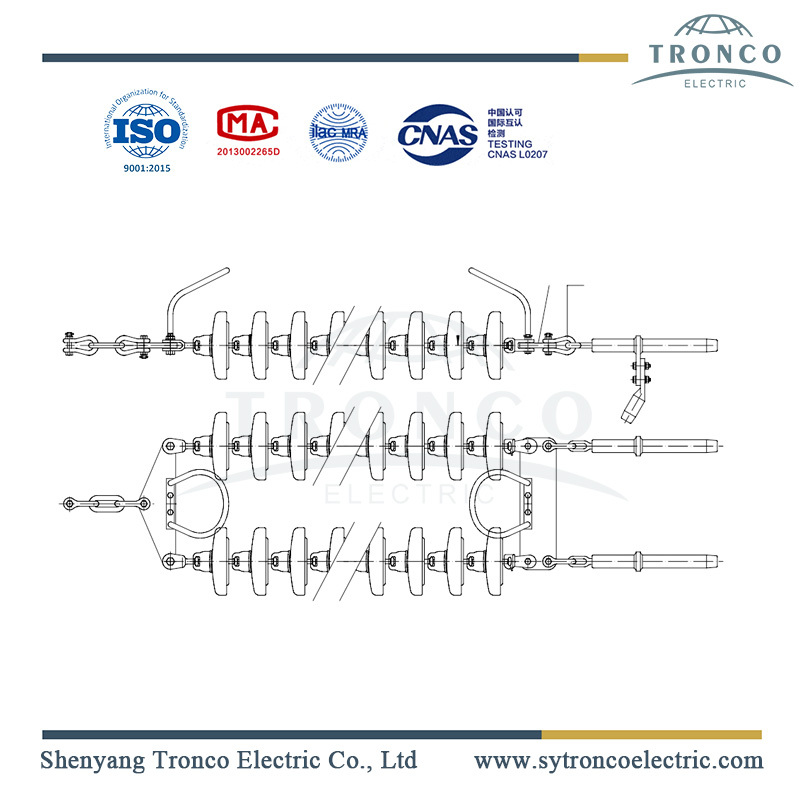

2. Double tension string
| 1. Anchor shackle | 2. Extension link | 3. Yoke plate | 4. Clevis |
| 5. Ball eye | 6. Insulators | 7. Socket clevis | 8. Yoke plate |
| 9. Clevis | 10. Yoke plate | 11. Clevis | 12. Yoke plate |
| 13. Anchor shackle | 14. Tension clamp |
Shenyang Tronco Electric Co., Ltd, as the insulators and hardware fittings supplier, can ensure close and continuous coordination between the insulators and fittings, so that all component parts of an insulator string are perfectly adapted to one another.
10kV-400kV tension insulator string, including single tension, double tension, triple tension, light duty, heavy-duty, and inverted tension
strings. The mechanical failing load is 40-210kN. Tronco Electric can provide the most practical design at a competitive price according to the client's specifications.
10kV-400kV tension insulator string, including single tension, double tension, triple tension, light duty, heavy-duty, and inverted tension
strings. The mechanical failing load is 40-210kN. Tronco Electric can provide the most practical design at a competitive price according to the client's specifications.
