Suspension Insulator String Introduction
Suspension insulator strings are including all the fittings for connecting the conductor to the insulator strings and for attaching the string to the cross arm or supporting structure for forming the necessary jumpers and for attaching the conductors at substation terminal bays.
Types of suspension insulator strings

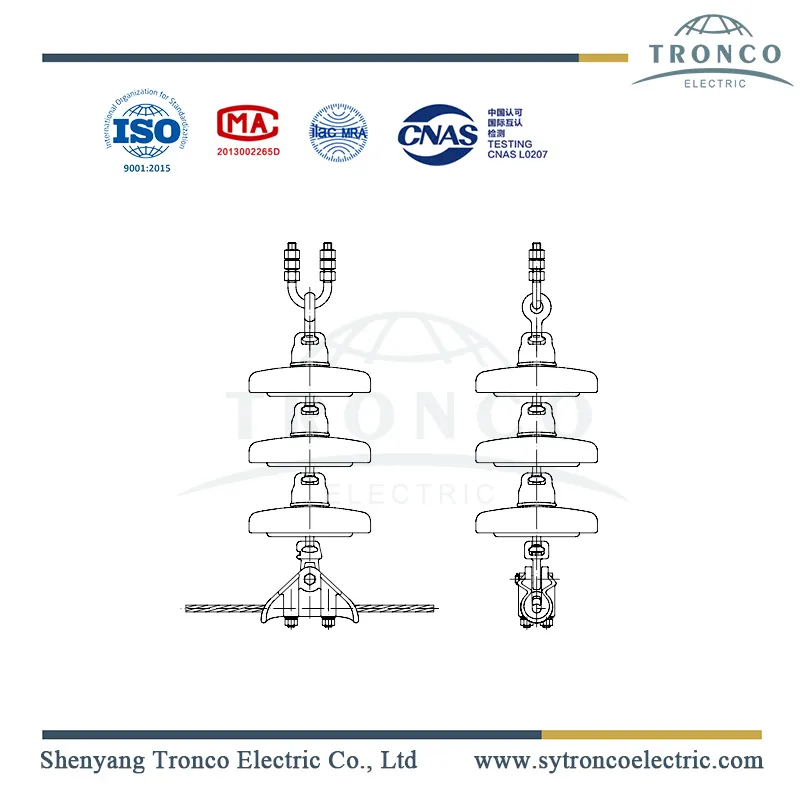

Single suspension insulator string.

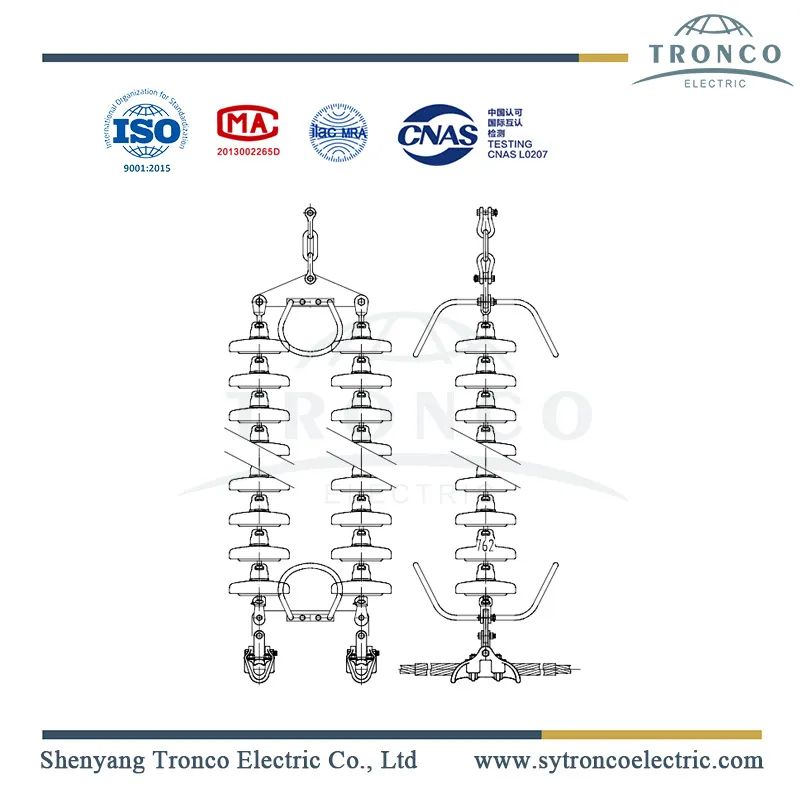

Double suspension insulator string for one conductor/twin conductors.
Triple suspension insulator string.
Jumper insulator string.
V insulator string.

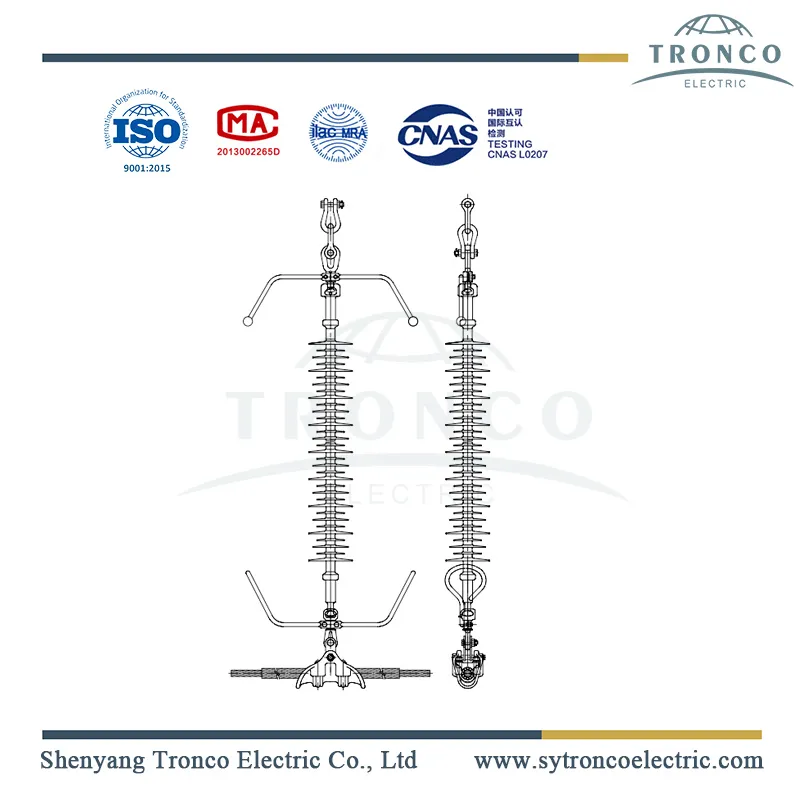

Arcing horn or Corona ring for High voltage strings
The suspension insulator strings are protected by arcing horns of galvanized steel, on the live and earthed sides. The size and shape of the horns are selected such as
1) To assume that the arcs will ignite between the horns
2) To minimize the reduction of the lightning impulse, withstand the voltage of the strings.
components of insulator strings so that the fittings can be perfectly adapted to the conductors and tower or pole structures.
Detail electrical insulator drawings and hardware fitting accessories drawings can be provided if needed. The connection between each insulator and fittings provided by Tronco Electric is the most reasonable and competitive design with our more than 20 years of market experience.
